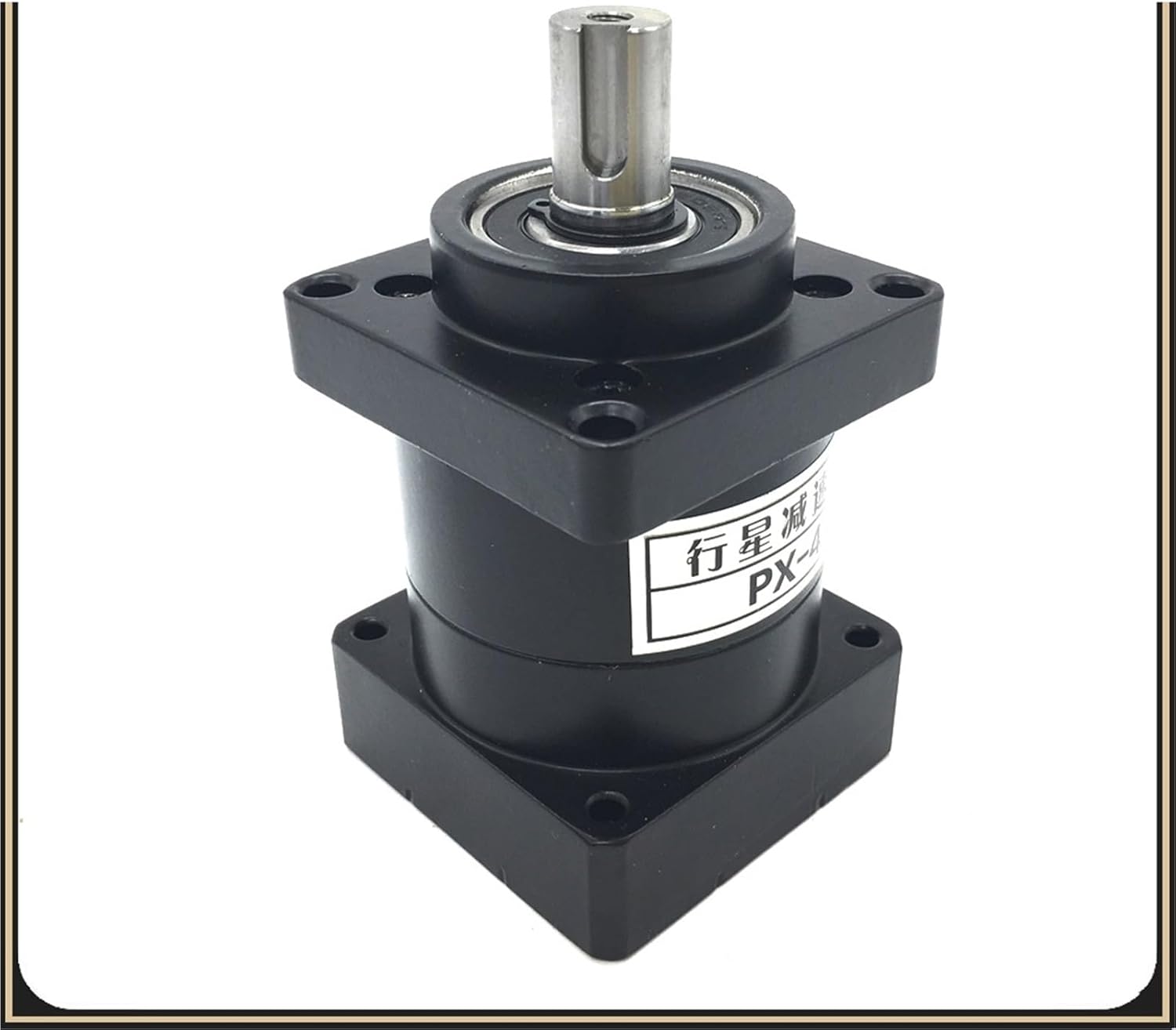

60MM Step-Down for Servo Motor Gearbox Nema 24 Planetary Gearbox Gear Speed Ratio 3/1,5/1,6/1,10/1~216/1 Brushless Motor Reducer(Ratio 36 to 1,14 Input 14 Output)
Product details
| Management number | 211319254 | Release Date | 2026/04/04 | List Price | $102.69 | Model Number | 211319254 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

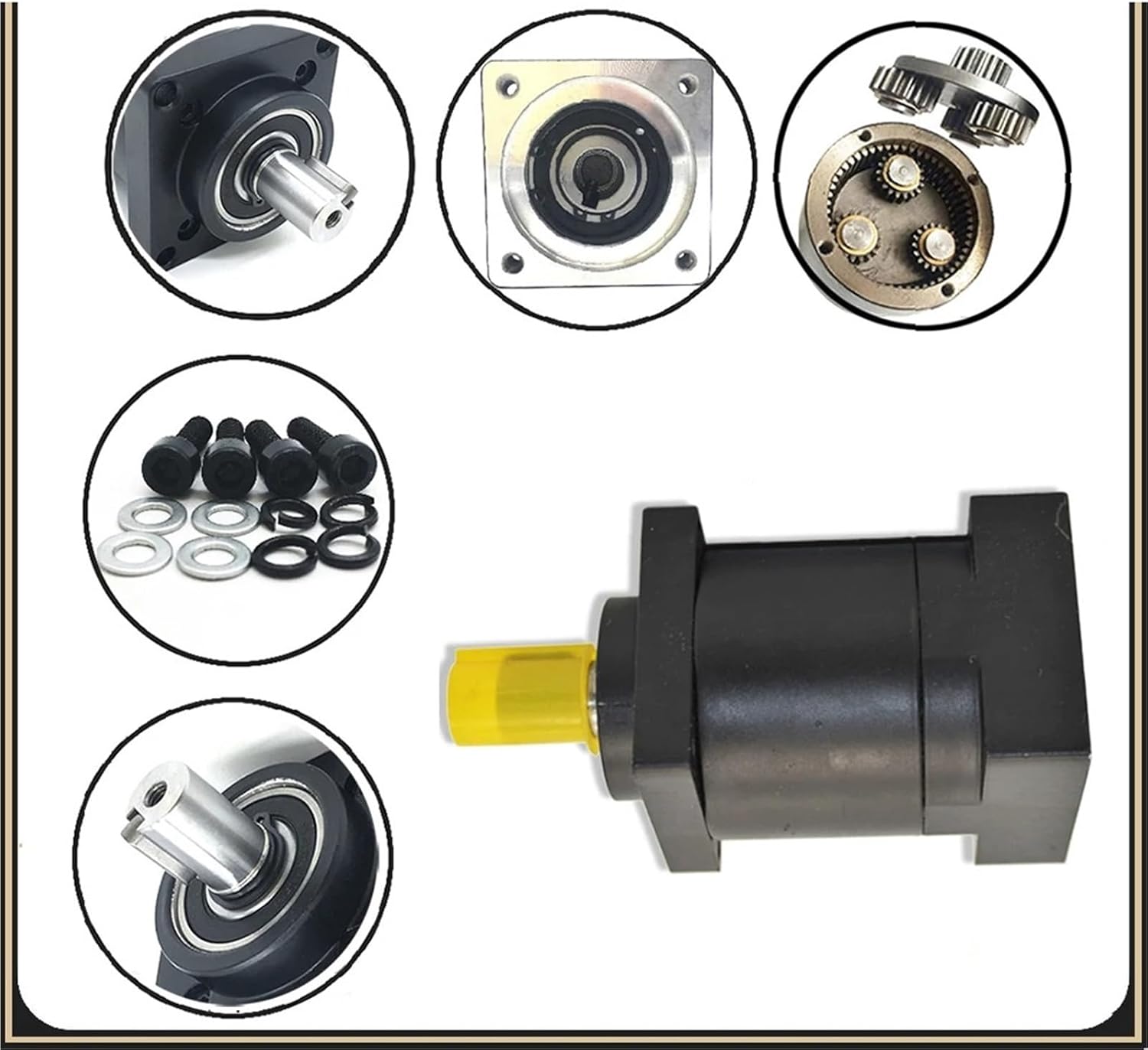

Gearboxes, Gearheads & Speed Reducers60MM Step-down For Servo Motor Gearbox Nema 24 Planetary Gearbox Gear Speed Ratio 3/1,5/1,6/1,10/1~216/1 Brushless Motor Reducer decelerator Package list :1x Planetary Gearbox1x Key4x Install screws 60PX Nema24 Reducer Technical ParametersStageStage 1(L1)Stage 2(L2)Stage 3(L3)Speed Ratio3.25/4/5/6/1016/24/36/30/40/50/60100/120/150/200Input (MM)141414Output shaft (MM)141414Keyway (MM)5 5 5 Body length (MM)7488102Rated load (N.M)153040Maximum load (N.M)254050Full load efficiency (%)959085Backlash Precision (arcmin)153050Rated input speed (RPM)300030003000Protection level (IP)656565Noise (dB)606060Average service life (H)200002000020000Gear material20Cr Carbon steel20Cr Carbon steel20Cr Carbon steel
- Gearboxes, Gearheads & Speed Reducers
- 60MM Step-down For Servo Motor Gearbox Nema 24 Planetary Gearbox Gear Speed Ratio 3/1,5/1,6/1,10/1~216/1 Brushless Motor Reducer
| Model | VKvmNYlxx |
|---|---|
| Brand Name | VKvmNYlxx |
| Model Name | VKvmNYlxx |
| Manufacturer | VKvmNYlxx |
