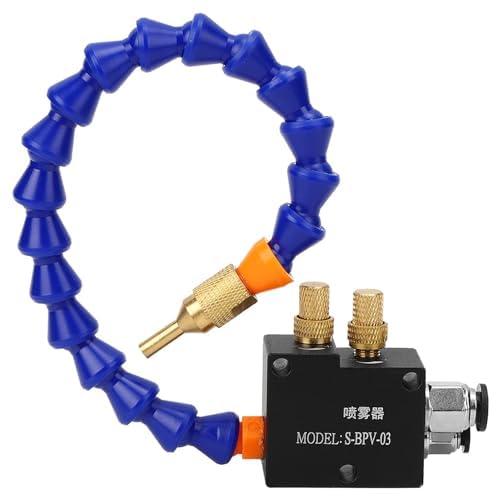

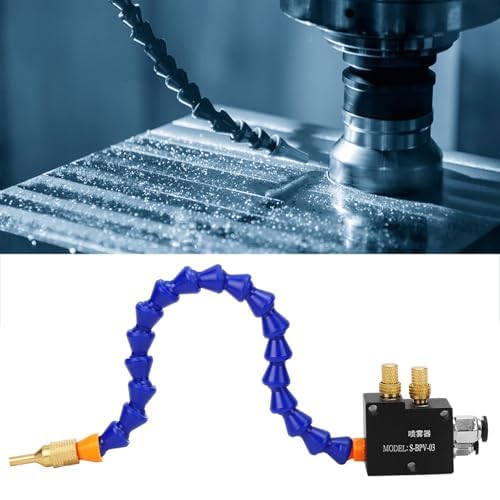

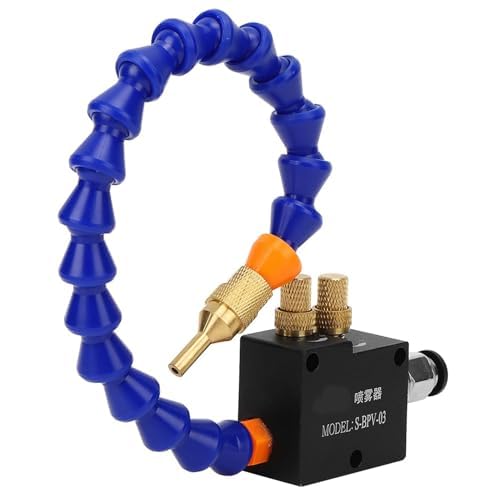

Cutting Machine Water Sprayer, CNC Machine Mist Coolant Lubrication Spray System Kit, 360° Adjustable CNC Machine Tools for Spray Cooling Low Pressure Cooling System 1PC

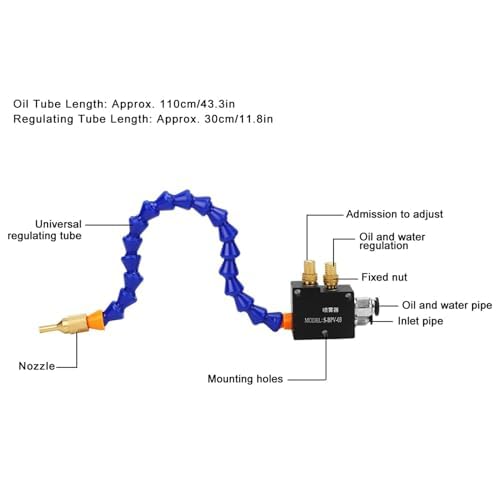

Item Type: Coolant SprayerRegulating Tube Material: PlasticMaterial: Aluminium Alloy+PlasticColor: As Pictures ShownModel: S-BPV-03Air Source Range: 0.1MPa-0.8MPaUse Liquid Viscosity Range: 0-68cstOil Tube Length: Approx. 110cm/43.3inRegulating Tube Length: Approx. 30cm/11.8inProduct Structure: Universal regulating tube, nozzle, oil and water regulation, admission to adjust, fixed nut, oil and water pipe, inlet pipeScope of Application: Cooling and lubrication of lathes, milling machines, grinding machines, tapping machines, grinding equipment, CNC machining centers, sawing machines, woodworking equipment, feeders and other equipmentPackage List：1 x Sprayer1 x Spray TubeNote:Silver hexagonal connector or gold round connector will be sent randomly, and make sure you will not mind before ordering.

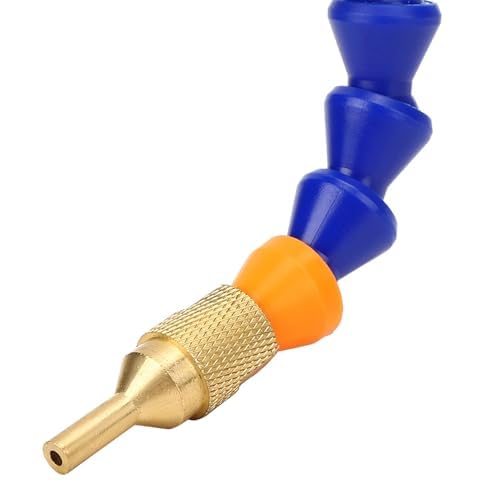

• The nozzle and check valve of the cutting machine water sprayer are made of notified materials and are not easy to deform. Copper accessories can withstand low temperatures and extend the service life of the mist coolant lubrication spray system kit
• The outlet pipe of the cnc machine mist coolant lubrication sprayer can be adjusted 360°. By twisting the universal bamboo tube, you can adjust the nozzle to the desired position and direction, and it is not easy to leak water or air
• The milling machine mist coolant lubrication sprayer has two knobs to control the water intake and air intake respectively. The spray cooling low pressure cooling system can be adjusted according to the usage to reduce damage
• The air inlet is 5/16 in, the water inlet pipe is 5/ in, and the nozzle inner diameter is 5/64 in. The universal bamboo tube is 11.8 in long, and the water suction pipe is 43.3 in long. The air source range is 0.1 to 0.8MPa, use liquid viscosity range is 0 to 68 cst

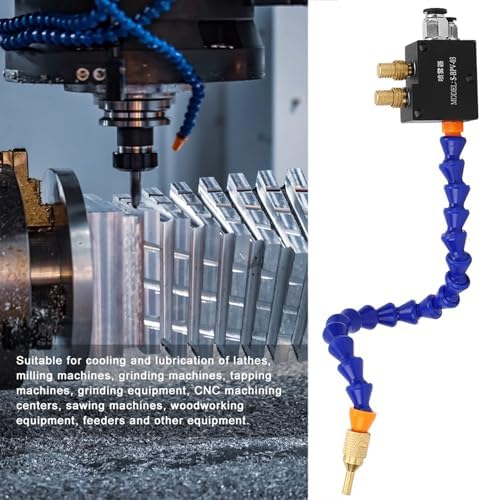

• The tools for cnc engraving machine includes 1 pcs sprayer, 1 pcs spray tube. Suitable for cooling and lubrication of lathes, milling machines, grinders, tapping machines, grinding equipment, CNC machining centers, sawing machines, woodworking equipment, feeders etc.
