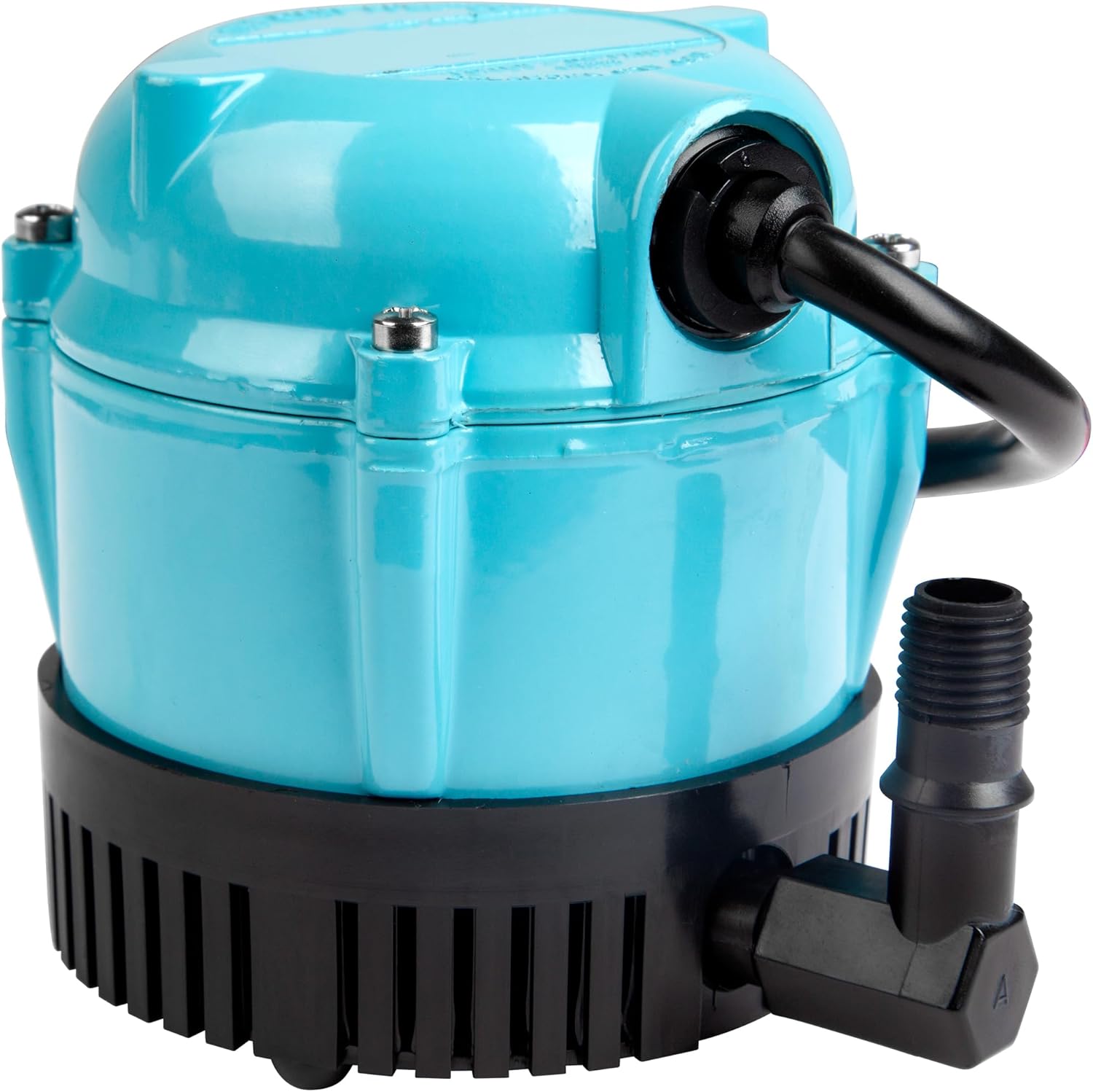

Little Giant 1-A 115 Volt, 1/200 HP, 170 GPH Small Submersible Permanently Oiled Pump for Fountain, Water Displays and Air Conditioners, 6-Foot Cord, Blue, 500203
Product details
| Management number | 210654816 | Release Date | 2026/04/02 | List Price | $34.93 | Model Number | 210654816 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Description Specification: Wattage: 70 watts Voltage: 115V Amps: 1.1 Cord length: 6 feet Product warranty: 1-year warranty Whether it's for your statuary fountain, water display, or wherever you need recirculation, the Little Giant 1-A 170 GPH Permanently Lubricated Pump is your solution. This small, submersible pump features a 1/200 HP direct-drive motor that is permanently lubricated with oil. It has a 7-foot maximum lift, screened inlet, 0.25-inch discharge, and is designed for continuous use. Small Submersible Oil-Filled Pump with Epoxy Coated Cast Aluminium Housing is used for Commercial, Industrial and Home Applications Including Statuary Fountains, Water Displays, Air Conditioners, Machine Tool Coolants And Many Other Applications Where Liquid Must Be Transferred Or Recirculated. From the Manufacturer Small submersible oil-filled pump with epoxy coated cast aluminum housing. For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 170 GPH pump features a 1/4" MNPT discharge, 7' shut-off head capability, and screened inlet. This pump is not recommended for aquariums, swimming pools and fuel oil transfer.
- APPLICATIONS: for commercial, industrial and home applications including statuary fountains, water displays, air conditions, machine tool coolants, hydroponics and other water transfer applications
- BUILT TO LAST: with features such as epoxy coated die-cast aluminum housing; oil-filled motor housing; thermally protected motor, and screened inlet which prevent debris from damaging the impeller
- SMALL SUBMERSIBLE PUMP: for submersible use only; equipped with 1/4-inch MNPT discharge; 3.6 inches long x 4.09 inches wide x 4.25 inches high
- PUMP SPECIFICATIONS: 170 GPH at 1-ft. lift; 7-foot shutoff; maximum 3.0 PSI; 6-foot cord, 1/4-inch MNPT discharge; rated for intermitten liquid temperatures up to 120 degrees F
- MOTOR SPECIFICATIONS: 1/200 HP, 115- Volts, 60 Hz, 1.1 running Amps, 70 Watts, Thermally Protected, CSA listed in the USA and Canada
| UPC | 010121002036 |
|---|---|
| Color | Blue |
| Voltage | 115 Volts |
| Flow Rate | 2 Gallons Per Minute |
| Brand Name | Little Giant |
| Unit Count | 1.0 Count |
| Item Weight | 2.83 Pounds |
| Manufacturer | Franklin Electric Co., Inc. |
| Model Number | 500203 |
| Power Source | Corded Electric |
| Material Type | Aluminum |
| Product Style | 6-Ft. Cord |
| Item Type Name | 1-A 115 Volt, 1/200 HP, 170 GPH Small Submersible Permanently Oiled Pump for Fountain, Water Displays and Air Conditioners, 6-Foot Cord |
| Included Components | 90 degree 1/4-inch MNPT discharge adapter, Installation manual, Pump with 6-ft. cord |
| Maximum Lifting Height | 7 Feet |
| Item Dimensions L x W x H | 6.25"L x 6.25"W x 4.5"H |
| Manufacturer Warranty Description | 1 year manufacturer |
| Global Trade Identification Number | 00010121002036 |
